Pattern Recognition Master MT4 MT5指标[MT5公式]

作者：MT4 MT5 来源：本站原创发布时间：2012年05月13日点击数：　【收藏到本网的会员中心】

该指标适用于MT4和MT5平台。

这种指标可帮您处理日常工作，可在图表上使用与相应形态相符的名称（像十字星或流行）标记蜡烛图。您需要做的仅是观察这种图表形态是上涨还是下跌，检查一般趋势，决定您的交易立场。您可以参考日本蜡烛图形态列表以便快速找出有价值的形态信号。

输入参数：

Show_Alert (默认 = true) — 如果设置为true，那么当监测到一定形态后会示警。

UseExtraDigit (默认 = false) — 如果您的经纪公司的报价使用额外数字（点），那么您应设置为true。

其它参数 — 打开或关掉多种形态的显示。建议不要更改此项。

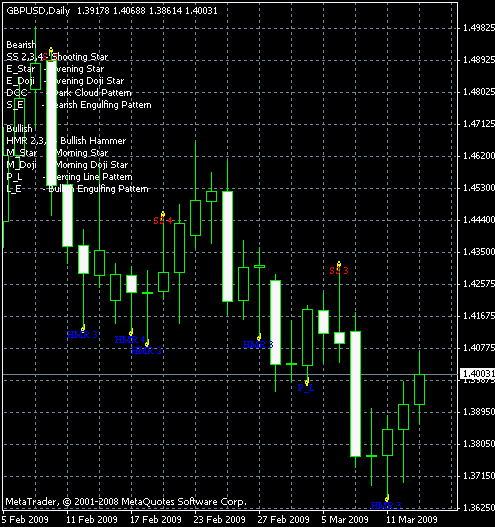

首先，您应该理解该指标仅能暗示形态。您会在蜡烛台附近看到这些符号，还会在屏幕左上角看到这些符号的图例。第二，您需要知道这些形态有什么作用，何时是空头头寸的信号，何时是多头头寸的信号。对于经验丰富的日本蜡烛台形态的交易商来说，该指标是一种非常有用的工具，但对于其他交易商来说，可能毫无用处。

标签:MT4 MT5指标源码

MT4源码：



//+------------------------------------------------------------------+
//|        Pattern Recognition Hammer & Shooting ShootStar v1.0      |
//|                                                                  |
//|           Original logic taken from Jason Robinson's             |
//|             Pattern recognition indicator                        |
//|       Updated pattern formulas by Carl Sanders to match          |
//|                 candle formulas used by RET,                     |
//|                 Refined Elliottician Trader                      |
//|   Alert logic fixed by Hartono Setiono  groups@mitrakom.com      |
//+------------------------------------------------------------------+
#property copyright "www.cxh99.com"
#property link      "http://www.cxh99.com"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Yellow
#property indicator_color2 Yellow

//Turn it to true if you broker uses extra digit in quotes
extern bool UseExtraDigit = false;

extern bool Show_Alert = true;

extern bool Display_ShootStar_2 = true;
extern bool Show_ShootStar_Alert_2 = true;
extern bool Display_ShootStar_3 = true;
extern bool Show_ShootStar_Alert_3 = true;
extern bool Display_ShootStar_4 = true;
extern bool Show_ShootStar_Alert_4 = true;
extern color Color_ShootStar = Red;
int Text_ShootStar = 8;

extern bool Display_Hammer_2 = true;
extern bool Show_Hammer_Alert_2 = true;
extern bool Display_Hammer_3 = true;
extern bool Show_Hammer_Alert_3 = true;
extern bool Display_Hammer_4 = true;
extern bool Show_Hammer_Alert_4 = true;
extern color Color_Hammer = Blue;
int Text_Hammer = 8;

extern bool Display_Doji = true;
extern bool Show_Doji_Alert = true;
extern color Color_Doji = Red;
int Text_Doji = 8;

extern bool Display_Stars = true;
extern bool Show_Stars_Alert = true;
extern int  Star_Body_Length = 5;
extern color Color_Star = Blue;
int Text_Star = 8;

extern bool Display_Dark_Cloud_Cover = true;
extern bool Show_DarkCC_Alert = true;
extern color Color_DarkCC = Red;
int Text_DarkCC = 8;

extern bool Display_Piercing_Line = true;
extern bool Show_Piercing_Line_Alert = true;
extern color Color_Piercing_Line = Blue;
int Text_Piercing_Line = 8;

extern bool Display_Bearish_Engulfing = true;
extern bool Show_Bearish_Engulfing_Alert = true;
extern color Color_Bearish_Engulfing = Red;
int Text_Bearish_Engulfing = 8;

extern bool Display_Bullish_Engulfing = false;
extern bool Show_Bullish_Engulfing_Alert = false;
extern color Color_Bullish_Engulfing = Blue;
int Text_Bullish_Engulfing = 8;


//---- buffers
double upArrow[];
double downArrow[];



//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init() {

//---- indicators

   SetIndexStyle(0,DRAW_ARROW, EMPTY);
   SetIndexArrow(0,72);
   SetIndexBuffer(0, downArrow);

   SetIndexStyle(1,DRAW_ARROW, EMPTY);
   SetIndexArrow(1,71);
   SetIndexBuffer(1, upArrow);

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit() {
   ObjectsDeleteAll(0, OBJ_TEXT);
   return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start(){

Comment("\n", "\n", "Bearish",
"\n", "SS 2,3,4 - Shooting Star",
"\n", "E_Star   - Evening Star",
"\n", "E_Doji   - Evening Doji Star",
"\n", "DCC      - Dark Cloud Pattern",
"\n", "S_E      - Bearish Engulfing Pattern",
"\n", "\n", "Bullish",
"\n", "HMR 2,3,4 - Bullish Hammer",
"\n", "M_Star    - Morning Star",
"\n", "M_Doji    - Morning Doji Star",
"\n", "P_L       - Piercing Line Pattern",
"\n", "L_E       - Bullish Engulfing Pattern");


   double Range, AvgRange;
   int counter, setalert;
   static datetime prevtime = 0;
   int shift;
   int shift1;
   int shift2;
   int shift3;
   int shift4;
   string pattern, period;
   int setPattern = 0;
   int alert = 0;
   int arrowShift;
   int textShift;
   double O, O1, O2, C, C1, C2, C3, L, L1, L2, L3, H, H1, H2, H3;
   double CL, CLmin, CL1, CL2, BL, BLa, BL90, BL1, BL2, UW, UWa, UW1, UW2, LW, LWa, LW1, LW2, BodyHigh, BodyLow;
   BodyHigh = 0;
   BodyLow = 0;
   double Doji_Star_Ratio = 0;
   double Doji_MinLength = 0;
   double Star_MinLength = 0;
   int  Pointer_Offset = 0;         // The offset value for the arrow to be located off the candle high or low point.
   int  High_Offset = 0;            // The offset value added to the high arrow pointer for correct plotting of the pattern label.
   int  Offset_ShootStar = 0;       // The offset value of the shooting star above or below the pointer arrow.
   int  Offset_Hammer = 0;          // The offset value of the hammer above or below the pointer arrow.
   int  Offset_Doji = 0;            // The offset value of the doji above or below the pointer arrow.
   int  Offset_Star = 0;            // The offset value of the star above or below the pointer arrow.
   int  Offset_Piercing_Line = 0;   // The offset value of the piercing line above or below the pointer arrow.
   int  Offset_DarkCC = 0;          // The offset value of the dark cloud cover above or below the pointer arrow.
   int  Offset_Bullish_Engulfing = 0;
   int  Offset_Bearish_Engulfing = 0;
   int  CumOffset = 0;              // The counter value to be added to as more candle types are met.
   int  IncOffset = 0;              // The offset value that is added to a cummaltive offset value for each pass through the routine so any
                                    // additional candle patterns that are also met, the label will print above the previous label.
   double Piercing_Line_Ratio = 0;
   int Piercing_Candle_Length = 0;
   int Engulfing_Length = 0;
   double Candle_WickBody_Percent = 0;
   int CandleLength = 0;

   if(prevtime == Time[0]) {
      return(0);
   }
   prevtime = Time[0];

   switch (Period()) {
      case 1:
         period = "M1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 10;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case 5:
         period = "M5";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 10;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case 15:
         period = "M15";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 0;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case 30:
         period = "M30";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 15;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case 60:
         period = "H1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 25;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 20;
         Offset_Hammer = 8;
         Offset_ShootStar = 8;
         Offset_Doji = 8;
         Offset_Star = 8;
         Offset_Piercing_Line = 8;
         Offset_DarkCC = 8;
         Offset_Bearish_Engulfing = 8;
         Offset_Bullish_Engulfing = 8;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 18;
         break;
      case 240:
         period = "H4";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 20;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 20;
         High_Offset = 40;
         Offset_Hammer = 10;
         Offset_ShootStar = 10;
         Offset_Doji = 10;
         Offset_Star = 10;
         Offset_Piercing_Line = 10;
         Offset_DarkCC = 10;
         Offset_Bearish_Engulfing = 10;
         Offset_Bullish_Engulfing = 10;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 25;
         break;
      case 1440:
         period = "D1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 30;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 80;
         Offset_Hammer = 15;
         Offset_ShootStar = 15;
         Offset_Doji = 15;
         Offset_Star = 15;
         Offset_Piercing_Line = 15;
         Offset_DarkCC = 15;
         Offset_Bearish_Engulfing = 15;
         Offset_Bullish_Engulfing = 15;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 60;
         break;
      case 10080:
         period = "W1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 40;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 35;
         Offset_Hammer = 20;
         Offset_ShootStar = 20;
         Offset_Doji = 20;
         Offset_Star = 20;
         Offset_Piercing_Line = 20;
         Offset_DarkCC = 20;
         Offset_Bearish_Engulfing = 20;
         Offset_Bullish_Engulfing = 20;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 35;
         break;
      case 43200:
         period = "MN";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 50;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 45;
         Offset_Hammer = 30;
         Offset_ShootStar = 30;
         Offset_Doji = 30;
         Offset_Star = 30;
         Offset_Piercing_Line = 30;
         Offset_DarkCC = 30;
         Offset_Bearish_Engulfing = 30;
         Offset_Bullish_Engulfing = 30;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 45;
         break;
   }

   //ADDED: Check if 5-digit quotes are used and multiply basic offsets
   if (UseExtraDigit)
   {
         Piercing_Candle_Length *= 10;
         Engulfing_Length *= 10;
         Candle_WickBody_Percent *= 10;
         CandleLength *= 10;
         Pointer_Offset *= 10;
         High_Offset *= 10;
         Offset_Hammer *= 10;
         Offset_ShootStar *= 10;
         Offset_Doji *= 10;
         Offset_Star *= 10;
         Offset_Piercing_Line *= 10;
         Offset_DarkCC = 10;
         Offset_Bearish_Engulfing *= 10;
         Offset_Bullish_Engulfing *= 10;
         IncOffset *= 10;
   }

   for (shift = 0; shift < Bars; shift++) {

      CumOffset = 0;
      setalert = 0;
      counter=shift;
      Range=0;
      AvgRange=0;
      for (counter=shift ;counter<=shift+9;counter++) {
         AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
      }
      Range=AvgRange/10;
      shift1 = shift + 1;
      shift2 = shift + 2;
      shift3 = shift + 3;
      shift4 = shift + 4;


      O = Open[shift1];
      O1 = Open[shift2];
      O2 = Open[shift3];
      H = High[shift1];
      H1 = High[shift2];
      H2 = High[shift3];
      H3 = High[shift4];
      L = Low[shift1];
      L1 = Low[shift2];
      L2 = Low[shift3];
      L3 = Low[shift4];
      C = Close[shift1];
      C1 = Close[shift2];
      C2 = Close[shift3];
      C3 = Close[shift4];
      if (O>C) {
         BodyHigh = O;
         BodyLow = C;  }
      else {
         BodyHigh = C;
         BodyLow = O; }
      CL = High[shift1]-Low[shift1];
      CL1 = High[shift2]-Low[shift2];
      CL2 = High[shift3]-Low[shift3];
      BL = Open[shift1]-Close[shift1];
      UW = High[shift1]-BodyHigh;
      LW = BodyLow-Low[shift1];
      BLa = MathAbs(BL);
      BL90 = BLa*Candle_WickBody_Percent;


 // Bearish Patterns

      // Check for Bearish Shooting ShootStar
      if ((H>=H1)&&(H>H2)&&(H>H3))  {
         if (((UW/2)>LW)&&(UW>(2*BL90))&&(CL>=(CandleLength*Point))&&(O!=C)&&((UW/3)<=LW)&&((UW/4)<=LW)/*&&(L>L1)&&(L>L2)*/)  {
         if (Display_ShootStar_2 == true)  {
            ObjectCreate(GetName("SS 2",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_ShootStar+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("SS 2",shift), "SS 2", Text_ShootStar, "Times New Roman", Color_ShootStar);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
         if (Show_ShootStar_Alert_2) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Shooting ShootStar 2";
            setalert = 1;
         }
         }
         }
      }

      // Check for Bearish Shooting ShootStar
      if ((H>=H1)&&(H>H2)&&(H>H3))  {
         if (((UW/3)>LW)&&(UW>(2*BL90))&&(CL>=(CandleLength*Point))&&(O!=C)&&((UW/4)<=LW)/*&&(L>L1)&&(L>L2)*/)  {
         if (Display_ShootStar_3 == true)  {
            ObjectCreate(GetName("SS 3",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_ShootStar+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("SS 3",shift), "SS 3", Text_ShootStar, "Times New Roman", Color_ShootStar);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
         if (Show_ShootStar_Alert_3) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Shooting ShootStar 3";
            setalert = 1;
         }
         }
         }
      }

      // Check for Bearish Shooting ShootStar
      if ((H>=H1)&&(H>H2)&&(H>H3))  {
         if (((UW/4)>LW)&&(UW>(2*BL90))&&(CL>=(CandleLength*Point))&&(O!=C)/*&&(L>L1)&&(L>L2)*/)  {
         if (Display_ShootStar_4 == true)  {
            ObjectCreate(GetName("SS 4",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_ShootStar+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("SS 4",shift), "SS 4", Text_ShootStar, "Times New Roman", Color_ShootStar);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
          if (Show_ShootStar_Alert_4) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Shooting ShootStar 4";
            setalert = 1;
         }
         }
         }
      }

      // Check for Evening Star pattern
      if ((H>=H1)&&(H1>H2)&&(H1>H3))  {
         if (/*(L>O1)&&*/(BLa<(Star_Body_Length*Point))&&(C2>O2)&&(!O==C)&&((C2-O2)/(/*0.001+*/H2-L2)>Doji_Star_Ratio)/*&&(C2<O1)*/&&(C1>O1)/*&&((H1-L1)>(3*(C1-O1)))*/&&(O>C)&&(CL>=(Star_MinLength*Point))){
         if (Display_Stars == true) {
            ObjectCreate(GetName("Star",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_Star+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("Star",shift), "E_Star", Text_Star, "Times New Roman", Color_Star);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
         if (Show_Stars_Alert) {
         if (setalert == 0 && Show_Alert == true) {
            pattern="Evening Star Pattern";
            setalert = 1;
         }
         }
         }
      }

      // Check for Evening Doji Star pattern
      if ((H>=H1)&&(H1>H2)&&(H1>H3))  {
         if (/*(L>O1)&&*/(O==C)&&((C2>O2)&&(C2-O2)/(/*0.001+*/H2-L2)>Doji_Star_Ratio)/*&&(C2<O1)*/&&(C1>O1)/*&&((H1-L1)>(3*(C1-O1)))*/&&(CL>=(Doji_MinLength*Point))) {
         if (Display_Doji == true) {
            ObjectCreate(GetName("Doji",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_Doji+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("Doji",shift), "E_Doji", Text_Doji, "Times New Roman", Color_Doji);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
         if (Show_Doji_Alert) {
         if (setalert == 0 && Show_Alert == true) {
            pattern="Evening Doji Star Pattern";
            setalert = 1;
         }
         }
         }
      }

      // Check for a Dark Cloud Cover pattern
      if ((C1>O1)&&(((C1+O1)/2)>C)&&(O>C)/*&&(O>C1)*/&&(C>O1)&&((O-C)/(/*0.001+*/(H-L))>Piercing_Line_Ratio)&&((CL>=Piercing_Candle_Length*Point))) {
         if (Display_Dark_Cloud_Cover == true) {
            ObjectCreate(GetName("DCC",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_DarkCC+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("DCC",shift), "DCC", Text_DarkCC, "Times New Roman", Color_DarkCC);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
         if (Show_DarkCC_Alert) {
         if (setalert == 0 && Show_Alert == true) {
            pattern="Dark Cloud Cover Pattern";
            setalert = 1;
         }
         }
      }

      // Check for Bearish Engulfing pattern
      if ((C1>O1)&&(O>C)&&(O>=C1)&&(O1>=C)&&((O-C)>(C1-O1))&&(CL>=(Engulfing_Length*Point))) {
         if (Display_Bearish_Engulfing == true) {
            ObjectCreate(GetName("S_E",shift), OBJ_TEXT, 0, Time[shift1], High[shift1] + (Pointer_Offset+Offset_Bearish_Engulfing+High_Offset+CumOffset)*Point);
            ObjectSetText(GetName("S_E",shift), "S_E", Text_Bearish_Engulfing, "Times New Roman", Color_Bearish_Engulfing);
            CumOffset = CumOffset+IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset*Point);
         }
         if (Show_Bearish_Engulfing_Alert) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Bearish Engulfing Pattern";
            setalert = 1;
         }
         }
      }

 // End of Bearish Patterns

 // Bullish Patterns

      // Check for Bullish Hammer
      if ((L<=L1)&&(L<L2)&&(L<L3))  {
      if (((LW/2)>UW)&&(LW>BL90)&&(CL>=(CandleLength*Point))&&(O!=C)&&((LW/3)<=UW)&&((LW/4)<=UW)/*&&(H<H1)&&(H<H2)*/)  {
         if (Display_Hammer_2 == true)  {
            ObjectCreate(GetName("HMR 2",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Hammer+CumOffset)*Point);
            ObjectSetText(GetName("HMR 2",shift), "HMR 2", Text_Hammer, "Times New Roman", Color_Hammer);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Hammer_Alert_2) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Bullish Hammer 2";
            setalert = 1;
         }
         }
         }
      }

      // Check for Bullish Hammer
      if ((L<=L1)&&(L<L2)&&(L<L3))  {
         if (((LW/3)>UW)&&(LW>BL90)&&(CL>=(CandleLength*Point))&&(O!=C)&&((LW/4)<=UW)/*&&(H<H1)&&(H<H2)*/)  {
         if (Display_Hammer_3 == true)  {
            ObjectCreate(GetName("HMR 3",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Hammer+CumOffset)*Point);
            ObjectSetText(GetName("HMR 3",shift), "HMR 3", Text_Hammer, "Times New Roman", Color_Hammer);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Hammer_Alert_3) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Bullish Hammer 3";
            setalert = 1;
         }
         }
         }
      }

      // Check for Bullish Hammer
      if ((L<=L1)&&(L<L2)&&(L<L3))  {
         if (((LW/4)>UW)&&(LW>BL90)&&(CL>=(CandleLength*Point))&&(O!=C)/*&&(H<H1)&&(H<H2)*/)  {
         if (Display_Hammer_4 == true)  {
            ObjectCreate(GetName("HMR 4",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Hammer+CumOffset)*Point);
            ObjectSetText(GetName("HMR 4",shift), "HMR 4", Text_Hammer, "Times New Roman", Color_Hammer);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Hammer_Alert_4) {
         if (setalert == 0 && Show_Alert == true) {
            pattern = "Bullish Hammer 4";
            setalert = 1;
         }
         }
         }
      }

     // Check for Morning Star

      if ((L<=L1)&&(L1<L2)&&(L1<L3))  {
      if (/*(H1<(BL/2))&&*/(BLa<(Star_Body_Length*Point))&&(!O==C)&&((O2>C2)&&((O2-C2)/(/*0.001+*/H2-L2)>Doji_Star_Ratio))/*&&(C2>O1)*/&&(O1>C1)/*&&((H1-L1)>(3*(C1-O1)))*/&&(C>O)&&(CL>=(Star_MinLength*Point))) {
         if (Display_Stars == true) {
            ObjectCreate(GetName("Star",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Star+CumOffset)*Point);
            ObjectSetText(GetName("Star",shift), "M_Star", Text_Star, "Times New Roman", Color_Star);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Stars_Alert) {
         if (shift == 0 && Show_Alert == true) {
            pattern="Morning Star Pattern";
            setalert = 1;
         }
         }
         }
      }

      // Check for Morning Doji Star

      if ((L<=L1)&&(L1<L2)&&(L1<L3))  {
      if (/*(H1<(BL/2))&&*/(O==C)&&((O2>C2)&&((O2-C2)/(/*0.001+*/H2-L2)>Doji_Star_Ratio))/*&&(C2>O1)*/&&(O1>C1)/*&&((H1-L1)>(3*(C1-O1)))*/&&(CL>=(Doji_MinLength*Point))) {
         if (Display_Doji == true) {
            ObjectCreate(GetName("Doji",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Doji+CumOffset)*Point);
            ObjectSetText(GetName("Doji",shift), "M_Doji", Text_Doji, "Times New Roman", Color_Doji);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Doji_Alert) {
         if (shift == 0 && Show_Alert == true) {
            pattern="Morning Doji Pattern";
            setalert = 1;
         }
         }
         }
      }

      // Check for Piercing Line pattern

      if ((C1<O1)&&(((O1+C1)/2)<C)&&(O<C)/*&&(O<C1)*//*&&(C<O1)*/&&((C-O)/(/*0.001+*/(H-L))>Piercing_Line_Ratio)&&(CL>=(Piercing_Candle_Length*Point))) {
         if (Display_Piercing_Line == true) {
            ObjectCreate(GetName("PrcLn",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Piercing_Line+CumOffset)*Point);
            ObjectSetText(GetName("PrcLn",shift), "P_L", Text_Piercing_Line, "Times New Roman", Color_Piercing_Line);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Piercing_Line_Alert) {
         if (shift == 0 && Show_Alert == true) {
            pattern="Piercing Line Pattern";
            setalert = 1;
         }
         }
      }

      // Check for Bullish Engulfing pattern

      if ((O1>C1)&&(C>O)&&(C>=O1)&&(C1>=O)&&((C-O)>(O1-C1))&&(CL>=(Engulfing_Length*Point))) {
         if (Display_Bullish_Engulfing) {
            ObjectCreate(GetName("L_E",shift), OBJ_TEXT, 0, Time[shift1], Low[shift1] - (Pointer_Offset+Offset_Bullish_Engulfing+CumOffset)*Point);
            ObjectSetText(GetName("L_E",shift), "L_E", Text_Bullish_Engulfing, "Times New Roman", Color_Bullish_Engulfing);
            CumOffset = CumOffset+IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset*Point);
         }
         if (Show_Bullish_Engulfing_Alert) {
         if (shift == 0 && Show_Alert == true) {
            pattern="Bullish Engulfing Pattern";
            setalert = 1;
         }
         }
      }

 // End of Bullish Patterns
      if (setalert == 1 && shift == 0) {
         Alert(Symbol(), " ", period, " ", pattern);
         setalert = 0;
      }
      CumOffset = 0;
   } // End of for loop



   return(0);
}
//+------------------------------------------------------------------+

string GetName(string aName,int shift)
{
  return(aName+DoubleToStr(Time[shift],0));
}

MT5源码：


//+------------------------------------------------------------------+
//|                                       Pattern Recognition Master |
//|                                      Copyright � 2010, EarnForex |
//|                                        http://www.cxh99.com/ |
//|                          Based on MT4 indicator by: Carl Sanders |
//+------------------------------------------------------------------+
#property copyright "www.cxh99.com"
#property link      "http://www.cxh99.com"
#property version   "1.01"
#property description "Recognizes Japanese candlestick patterns."

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_plots   2
#property indicator_color1 Yellow
#property indicator_type1   DRAW_ARROW
#property indicator_style1  STYLE_SOLID
#property indicator_width1  1
#property indicator_color2 Yellow
#property indicator_type2   DRAW_ARROW
#property indicator_style2  STYLE_SOLID
#property indicator_width2  1

//Change it to true if you broker uses extra digit in quotes
input bool UseExtraDigit = false;

input bool Show_Alert = true;

input bool Display_ShootStar_2 = true;
input bool Show_ShootStar_Alert_2 = true;
input bool Display_ShootStar_3 = true;
input bool Show_ShootStar_Alert_3 = true;
input bool Display_ShootStar_4 = true;
input bool Show_ShootStar_Alert_4 = true;
input color Color_ShootStar = Red;
int Text_ShootStar = 8;

input bool Display_Hammer_2 = true;
input bool Show_Hammer_Alert_2 = true;
input bool Display_Hammer_3 = true;
input bool Show_Hammer_Alert_3 = true;
input bool Display_Hammer_4 = true;
input bool Show_Hammer_Alert_4 = true;
input color Color_Hammer = Blue;
int Text_Hammer = 8;

input bool Display_Doji = true;
input bool Show_Doji_Alert = true;
input color Color_Doji = Red;
int Text_Doji = 8;

input bool Display_Stars = true;
input bool Show_Stars_Alert = true;
input int  Star_Body_Length = 5;
input color Color_Star = Blue;
int Text_Star = 8;

input bool Display_Dark_Cloud_Cover = true;
input bool Show_DarkCC_Alert = true;
input color Color_DarkCC = Red;
int Text_DarkCC = 8;

input bool Display_Piercing_Line = true;
input bool Show_Piercing_Line_Alert = true;
input color Color_Piercing_Line = Blue;
int Text_Piercing_Line = 8;

input bool Display_Bearish_Engulfing = true;
input bool Show_Bearish_Engulfing_Alert = true;
input color Color_Bearish_Engulfing = Red;
int Text_Bearish_Engulfing = 8;

input bool Display_Bullish_Engulfing = false;
input bool Show_Bullish_Engulfing_Alert = false;
input color Color_Bullish_Engulfing = Blue;
int Text_Bullish_Engulfing = 8;

//---- buffers
double upArrow[];
double downArrow[];

string period;
double Doji_Star_Ratio = 0;
double Doji_MinLength = 0;
double Star_MinLength = 0;
int  Pointer_Offset = 0;         // The offset value for the arrow to be located off the candle high or low point.
int  High_Offset = 0;            // The offset value added to the high arrow pointer for correct plotting of the pattern label.
int  Offset_ShootStar = 0;       // The offset value of the shooting star above or below the pointer arrow.
int  Offset_Hammer = 0;          // The offset value of the hammer above or below the pointer arrow.
int  Offset_Doji = 0;            // The offset value of the doji above or below the pointer arrow.
int  Offset_Star = 0;            // The offset value of the star above or below the pointer arrow.
int  Offset_Piercing_Line = 0;   // The offset value of the piercing line above or below the pointer arrow.
int  Offset_DarkCC = 0;          // The offset value of the dark cloud cover above or below the pointer arrow.
int  Offset_Bullish_Engulfing = 0;
int  Offset_Bearish_Engulfing = 0;
int  IncOffset = 0;              // The offset value that is added to a cummaltive offset value for each pass through the routine so any
                                    // additional candle patterns that are also met, the label will print above the previous label.
double Piercing_Line_Ratio = 0;
int Piercing_Candle_Length = 0;
int Engulfing_Length = 0;
double Candle_WickBody_Percent = 0;
int CandleLength = 0;


//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
void OnInit()
{
   IndicatorSetString(INDICATOR_SHORTNAME, "PRM");

   PlotIndexSetInteger(0, PLOT_ARROW, 71);
   PlotIndexSetInteger(1, PLOT_ARROW, 72);

   SetIndexBuffer(0, upArrow);
   SetIndexBuffer(1, downArrow);

   ArraySetAsSeries(upArrow, true);
   ArraySetAsSeries(downArrow, true);

	Comment("\n", "\n", "Bearish",
	"\n", "SS 2,3,4 - Shooting Star",
	"\n", "E_Star   - Evening Star",
	"\n", "E_Doji   - Evening Doji Star",
	"\n", "DCC      - Dark Cloud Pattern",
	"\n", "S_E      - Bearish Engulfing Pattern",
	"\n", "\n", "Bullish",
	"\n", "HMR 2,3,4 - Bullish Hammer",
	"\n", "M_Star    - Morning Star",
	"\n", "M_Doji    - Morning Doji Star",
	"\n", "P_L       - Piercing Line Pattern",
	"\n", "L_E       - Bullish Engulfing Pattern");

   //Defining the pip and ratio dependencies based on the timeframe
   switch (_Period)
   {
      case PERIOD_M1:
         period = "M1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 10;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case PERIOD_M5:
         period = "M5";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 10;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case PERIOD_M15:
         period = "M15";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 0;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case PERIOD_M30:
         period = "M30";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 15;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 15;
         Offset_Hammer = 5;
         Offset_ShootStar = 5;
         Offset_Doji = 5;
         Offset_Star = 5;
         Offset_Piercing_Line = 5;
         Offset_DarkCC = 5;
         Offset_Bearish_Engulfing = 5;
         Offset_Bullish_Engulfing = 5;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 16;
         break;
      case PERIOD_H1:
         period = "H1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 25;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 20;
         Offset_Hammer = 8;
         Offset_ShootStar = 8;
         Offset_Doji = 8;
         Offset_Star = 8;
         Offset_Piercing_Line = 8;
         Offset_DarkCC = 8;
         Offset_Bearish_Engulfing = 8;
         Offset_Bullish_Engulfing = 8;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 18;
         break;
      case PERIOD_H4:
         period = "H4";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 20;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 20;
         High_Offset = 40;
         Offset_Hammer = 10;
         Offset_ShootStar = 10;
         Offset_Doji = 10;
         Offset_Star = 10;
         Offset_Piercing_Line = 10;
         Offset_DarkCC = 10;
         Offset_Bearish_Engulfing = 10;
         Offset_Bullish_Engulfing = 10;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 25;
         break;
      case PERIOD_D1:
         period = "D1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 30;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 80;
         Offset_Hammer = 15;
         Offset_ShootStar = 15;
         Offset_Doji = 15;
         Offset_Star = 15;
         Offset_Piercing_Line = 15;
         Offset_DarkCC = 15;
         Offset_Bearish_Engulfing = 15;
         Offset_Bullish_Engulfing = 15;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 60;
         break;
      case PERIOD_W1:
         period = "W1";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 40;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 35;
         Offset_Hammer = 20;
         Offset_ShootStar = 20;
         Offset_Doji = 20;
         Offset_Star = 20;
         Offset_Piercing_Line = 20;
         Offset_DarkCC = 20;
         Offset_Bearish_Engulfing = 20;
         Offset_Bullish_Engulfing = 20;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 35;
         break;
      case PERIOD_MN1:
         period = "MN";
         Doji_Star_Ratio = 0;
         Piercing_Line_Ratio = 0.5;
         Piercing_Candle_Length = 10;
         Engulfing_Length = 50;
         Candle_WickBody_Percent = 0.9;
         CandleLength = 12;
         Pointer_Offset = 9;
         High_Offset = 45;
         Offset_Hammer = 30;
         Offset_ShootStar = 30;
         Offset_Doji = 30;
         Offset_Star = 30;
         Offset_Piercing_Line = 30;
         Offset_DarkCC = 30;
         Offset_Bearish_Engulfing = 30;
         Offset_Bullish_Engulfing = 30;
         Text_ShootStar = 8;
         Text_Hammer = 8;
         Text_Star = 8;
         Text_DarkCC = 8;
         Text_Piercing_Line = 8;
         Text_Bearish_Engulfing = 8;
         Text_Bullish_Engulfing = 8;
         IncOffset = 45;
         break;
   }

   if (UseExtraDigit)
   {
         Piercing_Candle_Length *= 10;
         Engulfing_Length *= 10;
         Candle_WickBody_Percent *= 10;
         CandleLength *= 10;
         Pointer_Offset *= 10;
         High_Offset *= 10;
         Offset_Hammer *= 10;
         Offset_ShootStar *= 10;
         Offset_Doji *= 10;
         Offset_Star *= 10;
         Offset_Piercing_Line *= 10;
         Offset_DarkCC = 10;
         Offset_Bearish_Engulfing *= 10;
         Offset_Bullish_Engulfing *= 10;
         IncOffset *= 10;
   }
}

//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
{
   ObjectsDeleteAll(0, 0, OBJ_TEXT);
   Comment("");
}

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &Time[],
                const double &Open[],
                const double &High[],
                const double &Low[],
                const double &Close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
{
   ArraySetAsSeries(Time, true);
   ArraySetAsSeries(High, true);
   ArraySetAsSeries(Low, true);
   ArraySetAsSeries(Close, true);
   ArraySetAsSeries(Open, true);

   double Range, AvgRange;
   static datetime prevtime = 0;
   int counter, setalert;
   int shift;
   int shift1;
   int shift2;
   int shift3;
   int shift4;
   string pattern, period;
   int setPattern = 0;
   int alert = 0;
   int arrowShift;
   int textShift;
   double O, O1, O2, C, C1, C2, C3, L, L1, L2, L3, H, H1, H2, H3;
   double CL, CLmin, CL1, CL2, BL, BLa, BL90, BL1, BL2, UW, UWa, UW1, UW2, LW, LWa, LW1, LW2, BodyHigh, BodyLow;
   BodyHigh = 0;
   BodyLow = 0;
	int CumOffset;

   if (prevtime == Time[0])
   {
      return(rates_total);
   }
   prevtime = Time[0];

   for (shift = 0; shift < rates_total - 9; shift++)
   {
      CumOffset = 0;
      setalert = 0;
      counter = shift;
      Range = 0;
      AvgRange = 0;

      for (counter = shift; counter <= shift + 9; counter++)
         AvgRange = AvgRange + MathAbs(High[counter] - Low[counter]);
      Range = AvgRange / 10;

      shift1 = shift + 1;
      shift2 = shift + 2;
      shift3 = shift + 3;
      shift4 = shift + 4;


      O = Open[shift1];
      O1 = Open[shift2];
      O2 = Open[shift3];
      H = High[shift1];
      H1 = High[shift2];
      H2 = High[shift3];
      H3 = High[shift4];
      L = Low[shift1];
      L1 = Low[shift2];
      L2 = Low[shift3];
      L3 = Low[shift4];
      C = Close[shift1];
      C1 = Close[shift2];
      C2 = Close[shift3];
      C3 = Close[shift4];

      if (O > C)
      {
         BodyHigh = O;
         BodyLow = C;
      }
      else
      {
         BodyHigh = C;
         BodyLow = O;
      }

      CL = High[shift1] - Low[shift1];
      CL1 = High[shift2] - Low[shift2];
      CL2 = High[shift3] - Low[shift3];
      BL = Open[shift1] - Close[shift1];
      UW = High[shift1] - BodyHigh;
      LW = BodyLow - Low[shift1];
      BLa = MathAbs(BL);
      BL90 = BLa * Candle_WickBody_Percent;


// Bearish Patterns
      // Check for Bearish Shooting ShootStar
      if ((H >= H1) && (H > H2) && (H > H3))
      {
         if (((UW / 2) > LW) && (UW > (2 * BL90)) && (CL >= (CandleLength * _Point)) && (O != C) && ((UW / 3) <= LW) && ((UW / 4) <= LW))
         {
         	if (Display_ShootStar_2)
         	{
	            MarkPattern(GetName("SS 2", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_ShootStar + High_Offset + CumOffset) * _Point, "SS 2", Text_ShootStar, Color_ShootStar);
	            CumOffset = CumOffset + IncOffset;
	            downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
         	}
         	if (Show_ShootStar_Alert_2)
         	{
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Shooting ShootStar 2";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Bearish Shooting ShootStar
      if ((H >= H1) && (H > H2) && (H > H3))
      {
         if (((UW / 3) > LW) && (UW > (2 * BL90)) && (CL >= (CandleLength * _Point)) && (O != C) && ((UW / 4) <= LW))
         {
         	if (Display_ShootStar_3)
         	{
            	MarkPattern(GetName("SS 3", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_ShootStar + High_Offset + CumOffset) * _Point, "SS 3", Text_ShootStar, Color_ShootStar);
	            CumOffset = CumOffset + IncOffset;
 		         downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
         	}
         	if (Show_ShootStar_Alert_3)
         	{
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Shooting ShootStar 3";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Bearish Shooting ShootStar
      if ((H >= H1) && (H > H2) && (H > H3))
      {
         if (((UW / 4) > LW) && (UW > (2 * BL90)) && (CL >= (CandleLength * _Point)) && (O != C))
         {
         	if (Display_ShootStar_4)
         	{
            	MarkPattern(GetName("SS 4", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_ShootStar + High_Offset + CumOffset) * _Point, "SS 4", Text_ShootStar, Color_ShootStar);
	            CumOffset = CumOffset + IncOffset;
 	 	         downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
  	 	      }
          	if (Show_ShootStar_Alert_4)
          	{
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Shooting ShootStar 4";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Evening Star pattern
      if ((H >= H1) && (H1 > H2) && (H1 > H3))
      {
         if ((BLa < (Star_Body_Length * _Point)) && (C2 > O2) && (!O == C) && ((C2 - O2) / (H2 - L2) > Doji_Star_Ratio) && (C1 > O1) && (O > C) && (CL >= (Star_MinLength * _Point)))
         {
         	if (Display_Stars)
         	{
          		MarkPattern(GetName("Star", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_Star + High_Offset + CumOffset) * _Point, "E_Star", Text_Star, Color_Star);
	            CumOffset = CumOffset + IncOffset;
 	           	downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
   	      }
	         if (Show_Stars_Alert)
	         {
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Evening Star Pattern";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Evening Doji Star pattern
      if ((H >= H1) && (H1 > H2) && (H1 > H3))
      {
         if ((O == C) && ((C2 > O2) && (C2 - O2)/(H2 - L2) > Doji_Star_Ratio) && (C1 > O1) && (CL >= (Doji_MinLength * _Point)))
         {
         	if (Display_Doji)
         	{
            	MarkPattern(GetName("Doji", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_Doji + High_Offset + CumOffset) * _Point, "E_Doji", Text_Doji, Color_Doji);
	            CumOffset = CumOffset + IncOffset;
 	           	downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
  	 	      }
         	if (Show_Doji_Alert)
         	{
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Evening Doji Star Pattern";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for a Dark Cloud Cover pattern
      if ((C1 > O1) && (((C1 + O1) / 2) > C) && (O > C) && (C > O1) && ((O - C) / ((H - L)) > Piercing_Line_Ratio) && ((CL >= Piercing_Candle_Length * _Point)))
      {
         if (Display_Dark_Cloud_Cover)
         {
            MarkPattern(GetName("DCC", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_DarkCC + High_Offset + CumOffset) * _Point, "DCC", Text_DarkCC, Color_DarkCC);
            CumOffset = CumOffset + IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
         }
         if (Show_DarkCC_Alert)
         {
         	if ((setalert == 0) && (Show_Alert))
         	{
          		pattern = "Dark Cloud Cover Pattern";
            	setalert = 1;
         	}
         }
      }

      // Check for Bearish Engulfing pattern
      if ((C1 > O1) && (O > C) && (O >= C1) && (O1 >= C) && ((O - C) > (C1 - O1)) && (CL >= (Engulfing_Length * _Point)))
      {
         if (Display_Bearish_Engulfing)
         {
         	MarkPattern(GetName("S_E", Time[shift]), Time[shift1], High[shift1] + (Pointer_Offset + Offset_Bearish_Engulfing + High_Offset + CumOffset) * _Point, "S_E", Text_Bearish_Engulfing, Color_Bearish_Engulfing);
            CumOffset = CumOffset + IncOffset;
            downArrow[shift1] = High[shift1] + (Pointer_Offset * _Point);
         }
         if (Show_Bearish_Engulfing_Alert)
         {
         	if ((setalert == 0) && (Show_Alert))
         	{
            	pattern = "Bearish Engulfing Pattern";
            	setalert = 1;
         	}
         }
      }
// End of Bearish Patterns


// Bullish Patterns
      // Check for Bullish Hammer
      if ((L <= L1) && (L < L2) && (L < L3))
      {
      	if (((LW / 2) > UW) && (LW > BL90) && (CL >= (CandleLength * _Point)) && (O != C) && ((LW / 3) <= UW) && ((LW / 4) <= UW))
      	{
         	if (Display_Hammer_2)
         	{
           		MarkPattern(GetName("HMR 2", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Hammer + CumOffset) * _Point, "HMR 2", Text_Hammer, Color_Hammer);
	            CumOffset = CumOffset + IncOffset;
 	           	upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
         	}
         	if (Show_Hammer_Alert_2)
         	{
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Bullish Hammer 2";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Bullish Hammer
      if ((L <= L1) && (L < L2) && (L < L3))
      {
         if (((LW / 3) > UW) && (LW > BL90) && (CL >= (CandleLength * _Point)) && (O != C) && ((LW / 4) <= UW))
         {
         	if (Display_Hammer_3)
         	{
            	MarkPattern(GetName("HMR 3", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Hammer + CumOffset) * _Point, "HMR 3", Text_Hammer, Color_Hammer);
	            CumOffset = CumOffset + IncOffset;
 		         upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
         	}
         	if (Show_Hammer_Alert_3)
         	{
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Bullish Hammer 3";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Bullish Hammer
      if ((L <= L1) && (L < L2) && (L < L3))
      {
         if (((LW / 4) > UW) && (LW > BL90) && (CL >= (CandleLength * _Point)) && (O != C))
         {
         	if (Display_Hammer_4)
         	{
            	MarkPattern(GetName("HMR 4", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Hammer + CumOffset) * _Point, "HMR 4", Text_Hammer, Color_Hammer);
	            CumOffset = CumOffset + IncOffset;
 	           upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
  		      }
    		   if (Show_Hammer_Alert_4)
    		   {
         		if ((setalert == 0) && (Show_Alert))
         		{
            		pattern = "Bullish Hammer 4";
            		setalert = 1;
         		}
         	}
         }
      }

     	// Check for Morning Star
      if ((L <= L1) && (L1 < L2) && (L1 < L3))
      {
      	if ((BLa < (Star_Body_Length * _Point)) && (!O == C) && ((O2 > C2) && ((O2 - C2) / (H2 - L2) > Doji_Star_Ratio)) && (O1 > C1) && (C > O) && (CL >= (Star_MinLength * _Point)))
      	{
         	if (Display_Stars)
         	{
	            MarkPattern(GetName("Star", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Star + CumOffset) * _Point, "Star", Text_Star, Color_Hammer);
 	  	         CumOffset = CumOffset + IncOffset;
  		         upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
         	}
         	if (Show_Stars_Alert)
         	{
         		if ((setalert == 0) && (Show_Alert))
         		{
           	 		pattern = "Morning Star Pattern";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Morning Doji Star
      if ((L <= L1) && (L1 < L2) && (L1 < L3))
      {
      	if ((O == C) && ((O2 > C2) && ((O2 - C2) / (H2 - L2) > Doji_Star_Ratio)) && (O1 > C1) && (CL >= (Doji_MinLength * _Point)))
      	{
         	if (Display_Doji)
         	{
            	MarkPattern(GetName("Doji", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Doji + CumOffset) * _Point, "Doji", Text_Doji, Color_Doji);
	            CumOffset = CumOffset + IncOffset;
 		         upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
         	}
         	if (Show_Doji_Alert)
         	{
         		if ((shift == 0) && (Show_Alert))
         		{
            		pattern = "Morning Doji Pattern";
            		setalert = 1;
         		}
         	}
         }
      }

      // Check for Piercing Line pattern
      if ((C1 < O1) && (((O1 + C1) / 2) < C) && (O < C) && ((C - O) / ((H - L)) > Piercing_Line_Ratio) && (CL >= (Piercing_Candle_Length * _Point)))
      {
         if (Display_Piercing_Line)
         {
            MarkPattern(GetName("PrcLn", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Piercing_Line + CumOffset) * _Point, "PrcLn", Text_Piercing_Line, Color_Piercing_Line);
            CumOffset = CumOffset + IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
         }
         if (Show_Piercing_Line_Alert)
         {
         	if ((shift == 0) && (Show_Alert))
         	{
            	pattern = "Piercing Line Pattern";
            	setalert = 1;
         	}
         }
      }

      // Check for Bullish Engulfing pattern
      if ((O1 > C1) && (C > O) && (C >= O1) && (C1 >= O) && ((C - O) > (O1 - C1)) && (CL >= (Engulfing_Length * _Point)))
      {
         if (Display_Bullish_Engulfing)
         {
            MarkPattern(GetName("L_E", Time[shift]), Time[shift1], Low[shift1] - (Pointer_Offset + Offset_Bullish_Engulfing + CumOffset) * _Point, "L_E", Text_Bullish_Engulfing, Color_Bullish_Engulfing);
            CumOffset = CumOffset + IncOffset;
            upArrow[shift1] = Low[shift1] - (Pointer_Offset * _Point);
         }
         if (Show_Bullish_Engulfing_Alert)
         {
         	if ((shift == 0) && (Show_Alert))
         	{
            	pattern = "Bullish Engulfing Pattern";
            	setalert = 1;
         	}
         }
      }
// End of Bullish Patterns

      if ((setalert == 1) && (shift == 0))
      {
         Alert(Symbol(), " ", period, " ", pattern);
         setalert = 0;
      }
      CumOffset = 0;
   } // End of for loop

   return(rates_total);
}
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
//| Concatenates string and time for a name.	                        |
//+------------------------------------------------------------------+
string GetName(string aName, datetime timeshift)
{
  return(aName + DoubleToString(timeshift, 0));
}

//+------------------------------------------------------------------+
//| Creates an object to mark the pattern on the chart.              |
//+------------------------------------------------------------------+
void MarkPattern(const string name, const datetime time, const double price, const string shortname, const int fontsize, const color patterncolor)
{
   ObjectCreate(0, name, OBJ_TEXT, 0, time, price);
   ObjectSetString(0, name, OBJPROP_TEXT, shortname);
	ObjectSetString(0, name, OBJPROP_FONT, "Times New Roman");
	ObjectSetInteger(0, name, OBJPROP_FONTSIZE, fontsize);
	ObjectSetInteger(0, name, OBJPROP_COLOR, patterncolor);
}

【字体：小大】【打印文章】【查看评论】

上一篇：Pinbar 监测器(MT4 MT5指标)
下一篇：没有了！

没有相关内容

Pattern Recognition Master MT4 MT5指标[MT5公式]

输入参数：

相关文章

栏目导航

本月热门排行

会员登录/注册
